Tutorials

Set 1

[[tut01.pdf]]

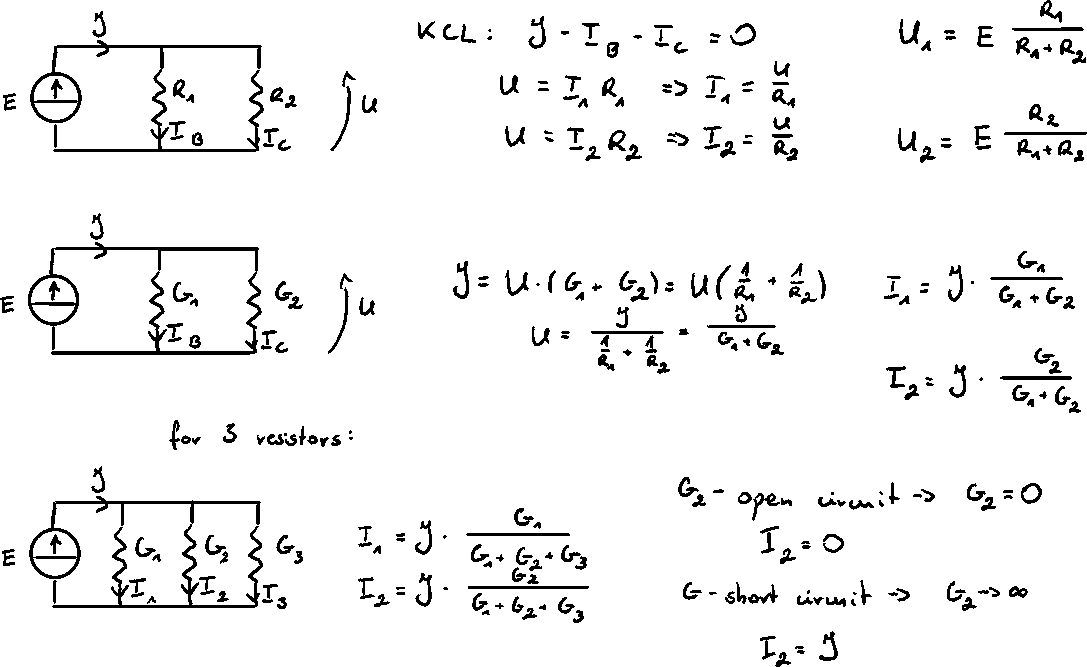

ex. 1

Set 2

[[tut02.pdf]]

ex. 3 (+5)

Set 3

[[tut03.pdf]]

Superposition rule

We cannot use superposition rule in circuits with non-linear components (fe. diodes)

ex. 1

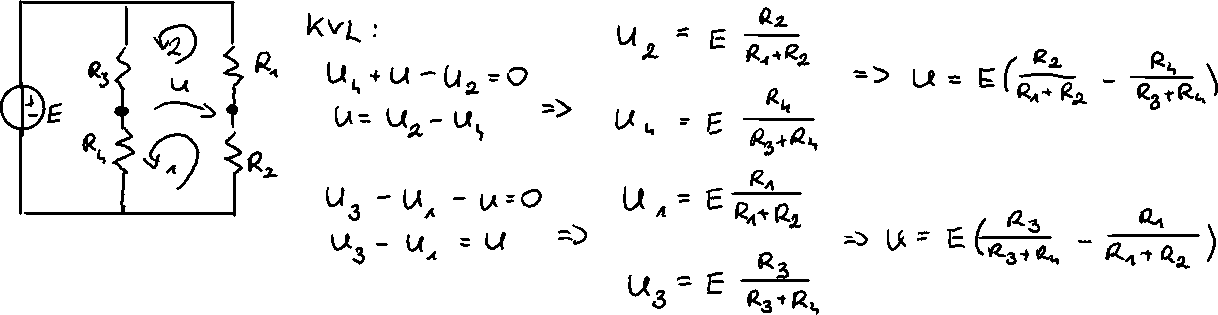

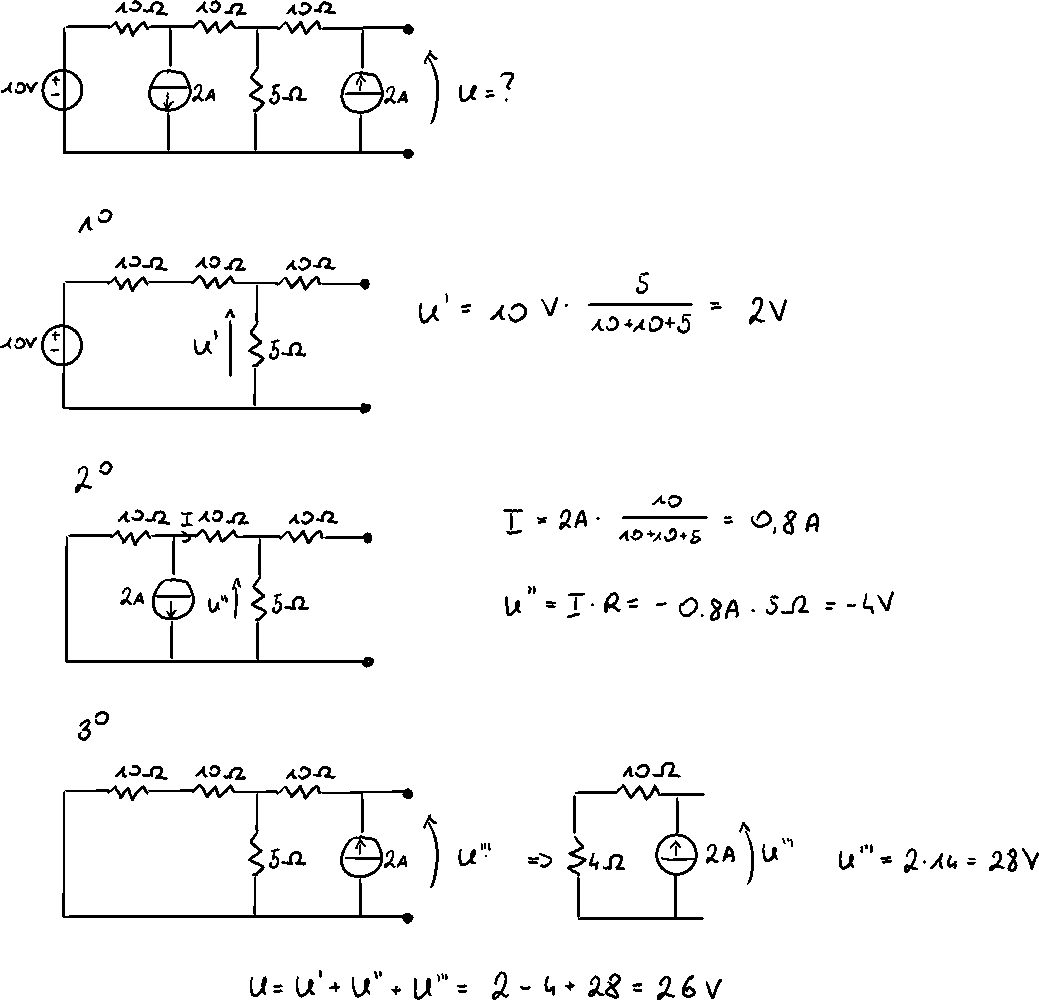

Find voltage $U$ .

ex. 2

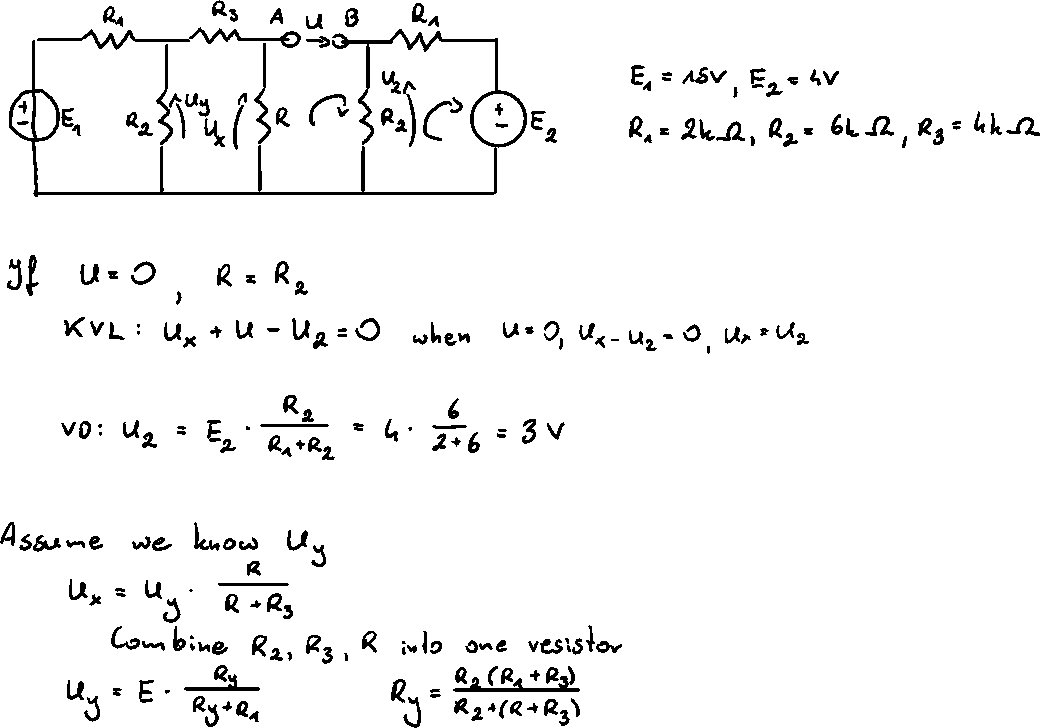

Find the value of $R$ for which $U = 0$ . Use the voltage divider formula. The following data is given: $E_{1} = 15 V, E_{2} = 4 V, R_{1} = 2 k Ω, R_{2} = 6 k Ω, R_{3} = 4 k Ω$

ex. 3

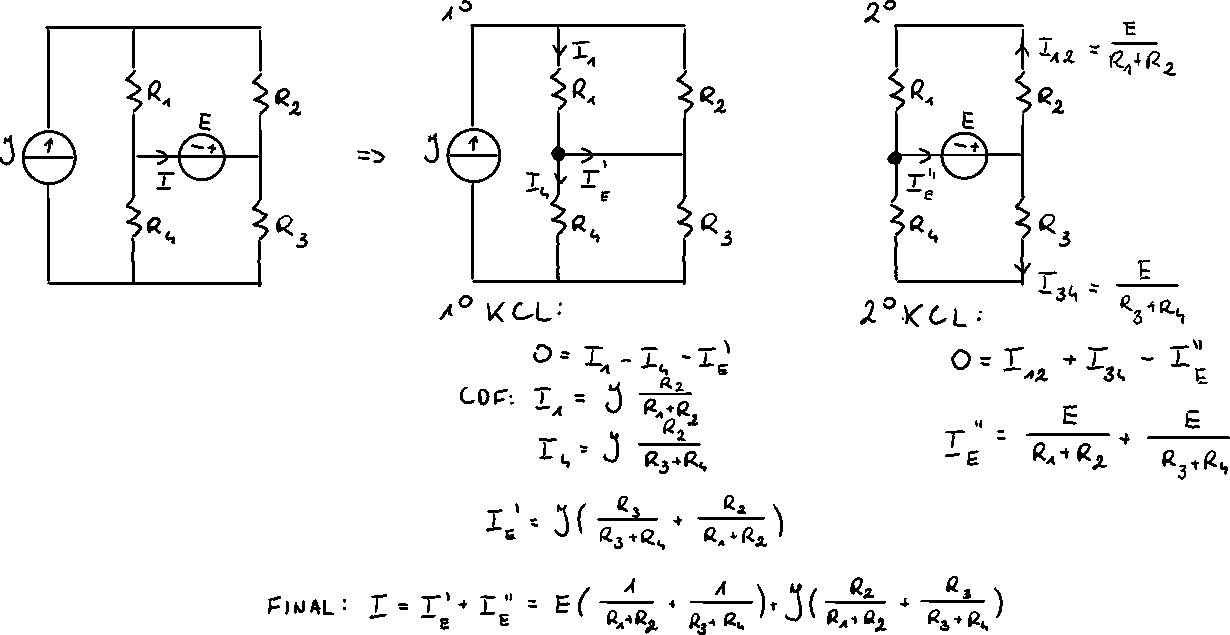

Using superposition rule, find current $I_{E}$ .

ex. 5

Using superposition rule find voltages across the following 1-ports
