4. Structure of an application programming model

Application programming model

Set of logical resources presented by the computer to HLL compiler or a programmer writing the application program in assembly language
Also called 'user programming model'

Components of APM

Processor

Composition of a programming model

All components are closely connected
it is not possible to design one component independently from the others
Programming model is usually associated with underlying hardware implementation

Registers

Register functions

Accumulator - may server as both source and destination
Address register - holds address component. Specialized:
stack pointer, frame pointer, static base pointer, return address/link register
Loop iteration counter
General-purpose register - may be used as accumulator and address register

Register set architectures

Architectures without registers

Must contain 1...3 registers, including PC
Data operations 'memory to memory
Move architecture - some locations of address space implemented as registers
registers hidden behind memory locations
special register write starts arithmetic or logical operation
one location mapped to PC

Minimal register set

PC, SP, Accumulator, Address register necessary for data structure accesses

Small set of specialized registers

6...8 registers with various fixed functions
Cannot be efficiently used by compilers
example - Intel 8080/8085

Small set of general purpose registers

6...8 general purpose registers

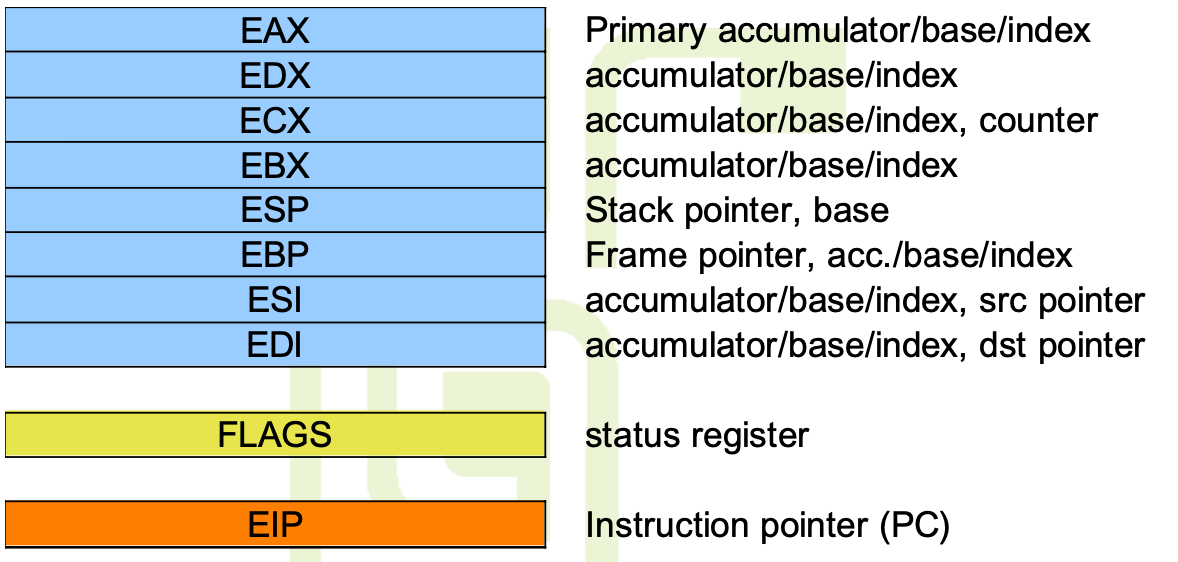

Example - x86 in 32-bit mode
8 registers - EAX, EDX, ECX, EBX, ESP, EBP, ESI, EDI
All registers can be used as accumulators and address registers, all except ESP as index registers
3...4 registers may be used for storing local variables of arguments
University/WUT/ECOAR/pictures/Pasted image 20250413003317.png

Big set of general purpose registers

16 or 32 general purpose registers
Registers are used for argument passing and local variable storage

Top-of-stack buffer

Big set of g.p. registers (32...128) designed to store major part of a stack frame (excluding structures)
Subroutine's body may be executed practically without memory references

Stack-based register set

Stack of 3...8 registers
Registers may have no names
All operations performed on top of stack
no explicit arguments or single argument
arguments popped from stack, result pushed onto

Addressing modes

Method of computing the address of a memory argument

Addressing modes not referencing memory

Register direct - argument contained in a register
mov eax, ecx
Immediate - data value (constant) contained in the instruction
mov eax, 123

Register indirect modes

Argument in memory, address of argument or its component placed in register
The register containing address - base register

Variants:

Minimal set of addressing modes

Only three addressing modes are necessary for efficient implementation of HLLs:

Absolute (direct) mode

Data in memory, address contained in the instruction
mov eax, [x]
x is a name of variable, converted by assembler into a constant address value
the easiest method of static data addressing
unnecessary - may be replaced by r.i. with displacement

PC-based modes

r.i. using PC as base register

Indexed modes

Address obtained by adding the address generated using some of the previously presented memory addressing modes and value of index register, optionally multiplied by a constant scale factor (power of 2)
mov eax, [ebx + ecx * 4]
register is called index register
scale - 1, 2, 4, 8, or 16
Multiplication implemented as left-shifting
Scale == 1 - double register indirect mode
Scale != 1 - scaled index mode
Examples
[table + ecx * 4] - absolute indexed
[ebx + edx * 2] - register indirect indexed

Register indirect with base automodification

Modifies the content of a base register by adding or subtracting the size of memory data being accessed
preincrementation ++i
postincrementation i++
predecrementation --i
postdecrementation i--
Stack operations make an implicit use of these modes, for full descending stack:
PUSH - predecrementation
POP - postincrementation

Memory indirect modes

Data in memory at the address, which component is also placed in memory (pointer variable). Two references:

  1. To access address component (ptr var)
  2. To access the target data
    Useful with table-of-pointers type structures

Conditional operations model

Implementation of conditional operations
Variants:

Conditional operations

Describes the implementation of conditional operations
Variants:

Conditional operations using flags

Flag - single bit register storing the attributes of the recent operation result

Available flags:

AC/HC and Parity is not used anymore (still found in x86)

Flag setting rules

All rules are described in the processor documentation
All flags are set by basic two-argument arithmetic and logical instructions
Other instructions (like single-argument) may set only some of the flags
I
n some architectures (M68k, HC08), Zero and Sign flags are set by data transfer instructions
Intel decided not to set those flags

Special instructions may only set the flags not affecting any other registers (in x86)

Conditional instructions

Specifies the condition for its execution

Conditional jump/branches - available in almost all archs.
Conditional skip - skip the next instruction (usually in very simple archs.)
Conditional data moves - available in newer archs
Conditional set instruction
Conditional execution of all or most instructions (ex. ARM)

Conditional operations without flags

Single instruction evaluates the bool value of a relation between data and executes some operation is true
ex. "jump if two registers are equal"
Typically found in simple RISC architectures like MIPS and RISC-V

Predicates

Generalized flags, storing logical values of several previously evaluated relations or expressions

Conditional operations in vector unit

if - then - else implemented as selection between two possible results (a, b) for each vector element

x = <cond> ? a : b;

a and b vectors are computed first
